Nudge Command Help

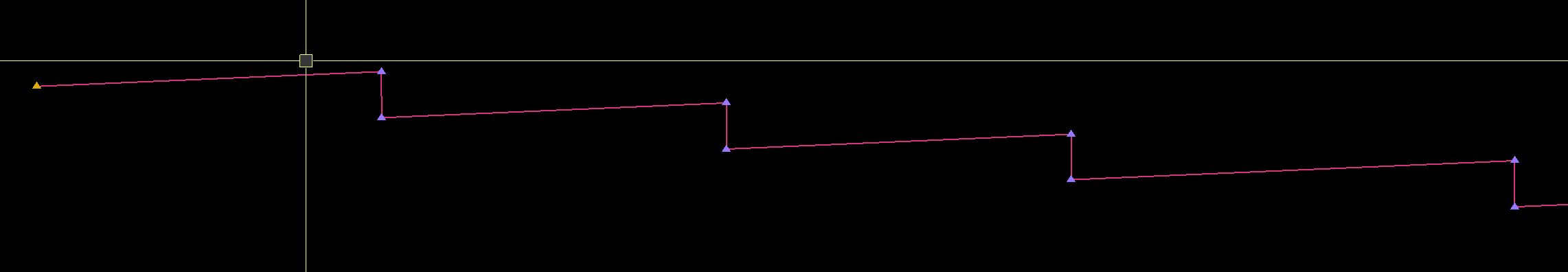

I created an alignment using the station and elevations of footer steps for a retaining wall. I used the same station for the vertical steps of the blocks. I have 2 stations that are the same with different elevations. I then copied the alignment to a different layer and used the convert to linestring command. I then tried using the nudge command to bump the vertical faces of the linestring. When selecting “Move selected nodes” it is not allowing me to bump the line so that the elevations are not creating a vertical step in the line. What I am doing wrong? I have used this command before with lines i created from cross sections and it worked perfectly.

? why not edit the vertical in the alignment editor or the RPS Edit by Spreadsheet? Is it just the vertical to nudge?

It’s my understanding that Nudge just moves the selected line/nodes left or right (based on stationing of the line). It sounds like you’re trying to shift nodes up- or down-station. I think you’re best bet is to edit the stations manually. If you create an alignment, I personally would use the RPS Edit by Spreadsheet and plug it into Ask Rocky, Claude, or ChatGPT and instruct it to edit all duplicate stations by shifting the one with the higher elevation by .04-.1 ft.

If the vertical segments have more than 2 nodes it will not work - use the Smart Edit - Model Flag Fixer version as that cleans up multiple nodes on vertical faces where you have 3 or more nodes.

Alan
