Cross Sections hatch does not extend to limit of surface and cut fill does not report correctly

User Q & A (Post Here)
1

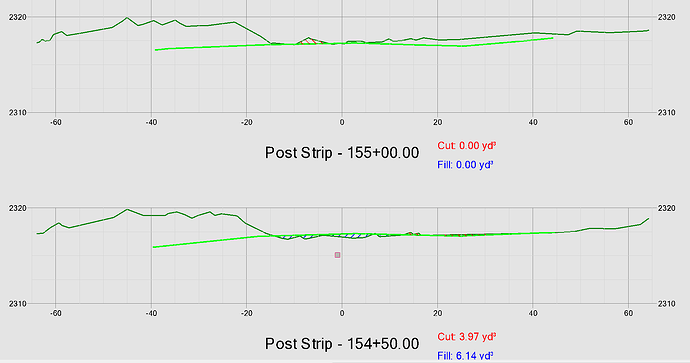

image1978×1043 30.2 KB

Cross Sections hatch does not extend to limit of surface and cut fill does not report correctly. Background Existing surface created from 5 Drone flights and combined using Composite Surface. Corridor created by assigning this surface to an alignment ( Darker Green ) the Post Strip was created from 7 individual Field Surveys ( spj Files ) that were imported and then combined again using the Composite Surface command and Then gaps in surface were patched by adding lines as Surface Members.

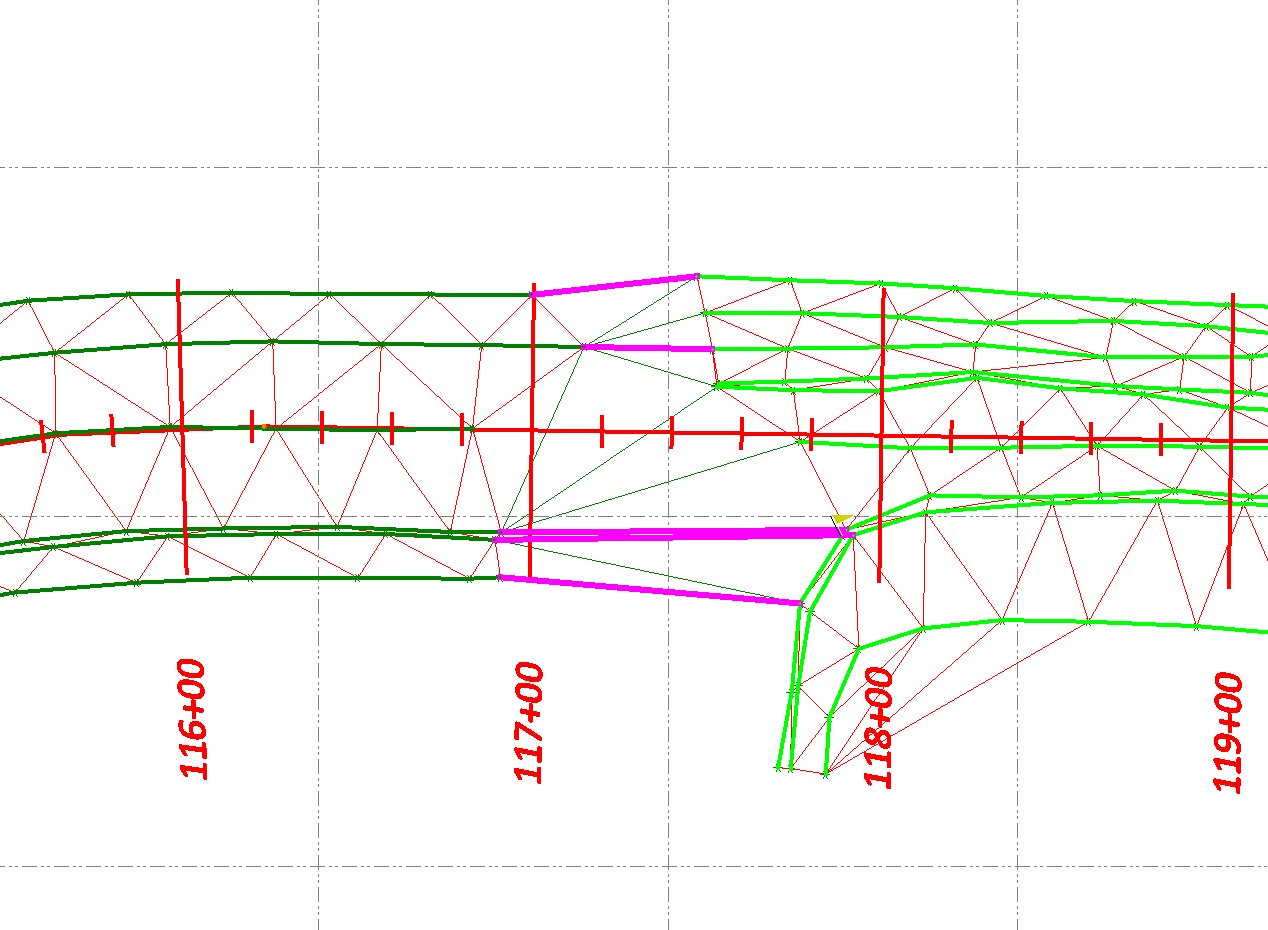

image1268×930 18.3 KB

image1653×894 9.78 KB

Am I correct in my assumption that the Cut Fiils are not reporting end area but are reporting Volume between Surfaces over the interval of 50 ft in this case. Again Hatch not showing as expected.

2

Try the following

  1. Add tie slopes to the ends of the Design Surface to close out the areas between Design and Existing

  2. Use Solid Fills instead of Hatching in the cross section editor settings before building the section drawings

  3. If those fail send me / us the file so we can take a look at it for you

Can you post back if these work for you or not

Alan
